项目案例

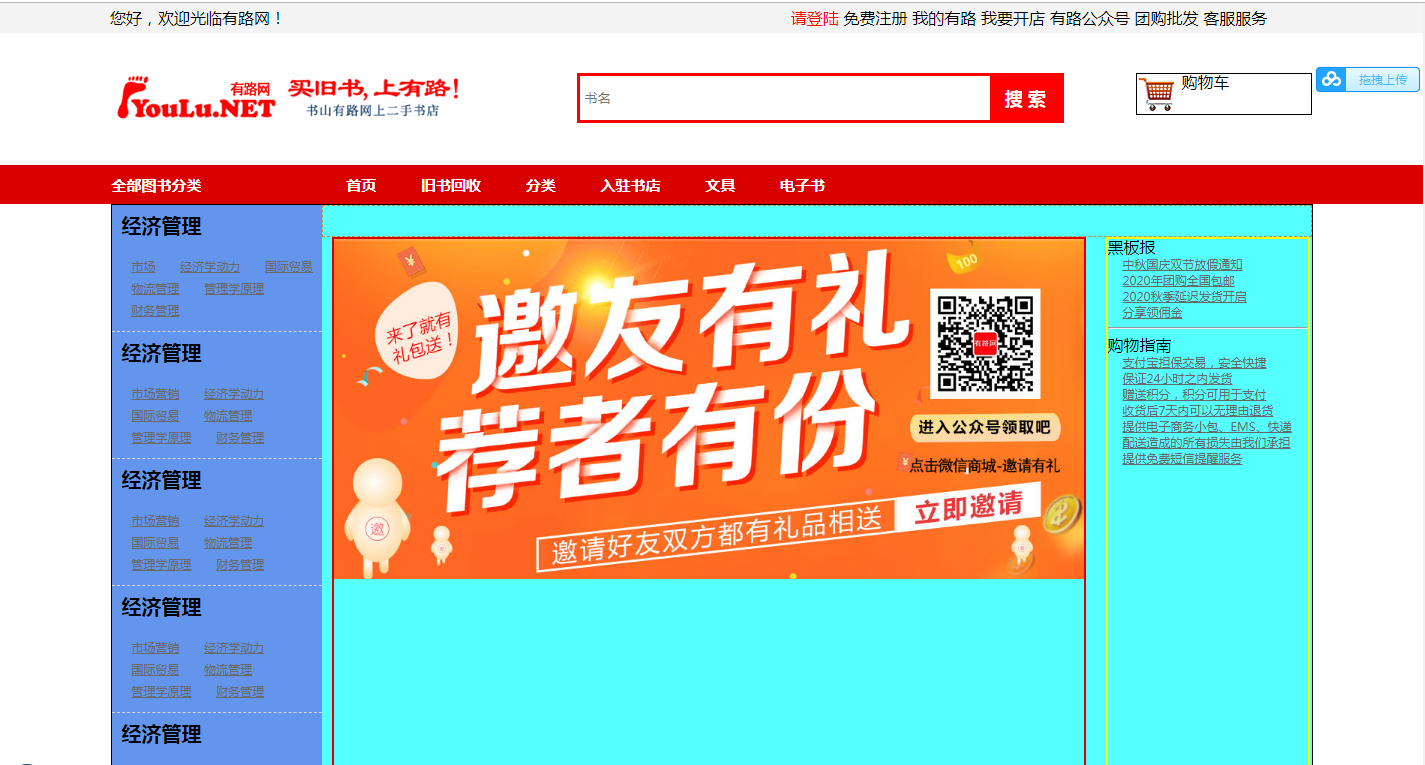

目标:实现有路网首页布局

--->有路网

样式重置

一些元素带有默认样式,在制作页面时往往需要计算,为了方便,可以清空重置元素的默认样式,reset.css

css
/* http://meyerweb.com/eric/tools/css/reset/
   v2.0 | 20110126
   License: none (public domain)
*/

html, body, div, span, applet, object, iframe,
h1, h2, h3, h4, h5, h6, p, blockquote, pre,
a, abbr, acronym, address, big, cite, code,
del, dfn, em, img, ins, kbd, q, s, samp,
small, strike, strong, sub, sup, tt, var,
b, u, i, center,
dl, dt, dd, ol, ul, li,
fieldset, form, label, legend,
table, caption, tbody, tfoot, thead, tr, th, td,
article, aside, canvas, details, embed,
figure, figcaption, footer, header, hgroup,
menu, nav, output, ruby, section, summary,
time, mark, audio, video {
	margin: 0;
	padding: 0;
	border: 0;
	font-size: 100%;
	font: inherit;
	vertical-align: baseline;
}
/* HTML5 display-role reset for older browsers */
article, aside, details, figcaption, figure,
footer, header, hgroup, menu, nav, section {
	display: block;
}
body {
	line-height: 1;
	font-family:"Microsoft YaHei", "宋体" ;
	font-size: 12px;
}
ol, ul {
	list-style: none;
}
blockquote, q {
	quotes: none;
}
blockquote:before, blockquote:after,
q:before, q:after {
	content: '';
	content: none;
}
table {
	border-collapse: collapse;
	border-spacing: 0;
}

.clear{
	clear: both;
}

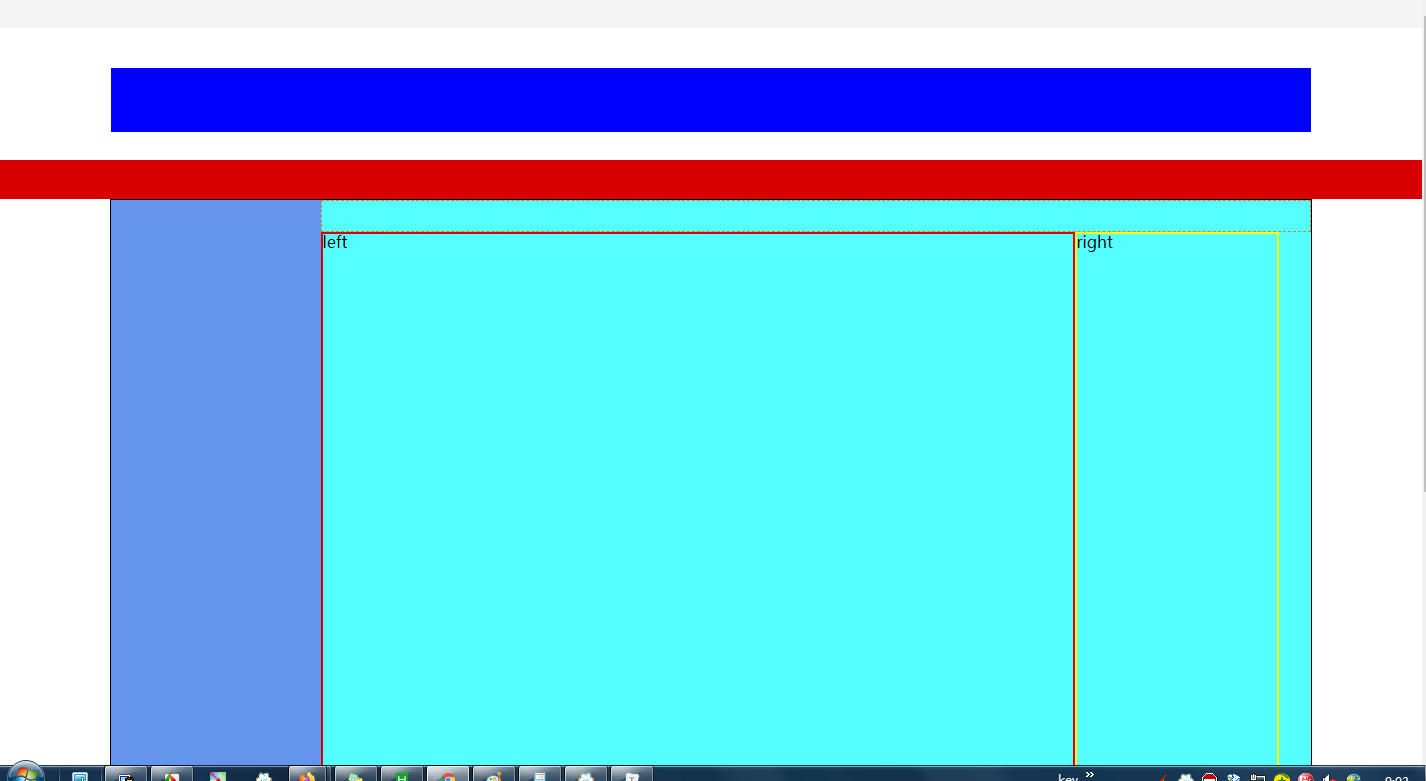

整体体框架

1028-01

实现代码

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />
		<style>

			.header{
				height: 29px;
				background-color: #F4F4F4;
			}

			.search{
				height: 64px;
				width: 1200px;
				background-color: #0000FF;
				margin: 0 auto;
				margin-top:40px ;
			}

			.nav{
				height: 39px;
				margin-top: 28px;
				background-color: #D80000;
			}


			.wrapSlide{
				width: 1200px;
				background-color: #98FB98;
				margin: 0 auto;
				border: solid 1px black;
			}

			.wrapSlide .left,.wrapSlide .right{
				float: left;
			}

			.wrapSlide .left{
				width: 210px;
				height: 968px;
				background-color: #6495ED;
			}
			.wrapSlide .right{
				width: 990px;
				height: 968px;
				background-color: #55ffff;
			}
			.clear{
				clear: both;
			}
			.helpBar{
				border: dashed 1px #CD853F;
				height: 30px;
			}
			.wrapContent .wrapContentL, .wrapContent .wrapContentR{
				float: left;
			}
			.wrapContent .wrapContentL{
				width: 750px;
				height: 940px;
				border: solid 2px #D80000;
			}
			.wrapContent .wrapContentR{
				width: 200px;
				height: 940px;
				border: solid 2px #ffff00;
			}
		</style>
	</head>
	<body>
		<div class="header"> </div>
		<div class="search"> </div>
		<div class="nav"> </div>
		<div class="wrapSlide">
			<div class="left">
			</div>
			<div class="right">
					<div class="helpBar"></div>

					<div class="wrapContent">
						<div class="wrapContentL">left</div>
						<div class="wrapContentR">right</div>
						<div class="clear"></div>
					</div>

			</div>
			<div class="clear"></div>
		</div>


	</body>
</html>

头部导航

1028-01

代码实现

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />
		<style>
			.header{
				background-color: #F4F4F4;
				height: 30px;
			}
			.header .left ,.header .right{
				display: inline-block;
				line-height:30px ;
			}
			.header .left{
				margin-left:110px ;
			}
			.header .right{
				margin-left: 500px;
			}
		</style>
	</head>
	<body>
		<div class="header">
			<div class="left"> 您好,欢迎光临有路网!</div>
			<div class="right"> <span  style="color: red;">请登陆</span>  <span class="borderright" >免费注册</span>
			<span class="borderright" >我的有路 </span>
			<span  class="borderright" >我要开店 </span>
			<span class="borderright" >有路公众号 </span>
			<span class="borderright" >团购批发 </span>
			<span>客服服务</span>
			</div>

		</div>
	</body>
</html>

搜索框

1028-01

代码实现

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />
		<style>
			.search {
				/* width: 496px; */
				height: 40px;
			}

			.search .logo , .search .searchform ,.search .cart{
				float: left;
				/* display: inline-block; */
			}
			.search .logo{
				width: 355px;
				/* border: solid 1px black; */
			}
			.search .searchform{
				width: 500px;
				margin-left: 120px;
			}

			.search .cart{
				width: 129px;
				height: 40px ;
				border: solid 1px black;
				background-image: url(../img/cart.jpg);
				background-repeat:no-repeat;
				padding-left: 45px;
				margin-left: 60px;
			}
			.search .inp{
				border: solid 3px red;
				height:34px ;
				width: 400px;
				padding: 5px;
			}
			.search .btn{
				background-color: red;
				width: 73px;
				height:50px ;
				margin-left: -6px;
				display: inline-block;
				border: 0px;
				letter-spacing:5px;
				font-size: 18px;
				font-weight: 700;
				color: white;
				vertical-align: top;
			}

		</style>
	</head>
	<body>

		<div class="search">
			<div class="logo">
				<img src="../img/logo.jpg" />
			</div>
			<div class="searchform">
				<form>
					<input type="text" class="inp" placeholder="书名">
					<input type="button" value="搜索" class="btn">
				</form>
			</div>

			<div class="cart"> 购物车</div>
			<div class="clear"></div>
		</div>

	</body>
</html>

导航栏

1028-01

代码实现

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />
		<style>
			.nav{
				height: 39px;
				margin-top: 28px;
				background-color: #D80000;
			}
			.nav .content{
				width: 1200px;
				height: 100%;
				margin: 0 auto;
				border: solid 1px orange;
			}
			.nav .content span{
				display: inline-block;
				height: 39px;
				line-height:39px ;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l ul{
				width: 530px;
				line-height: 39px;
			}
			.nav .content .nav_c_l li{
				display: inline-block;
				line-height: 39px;
				height: 39px;
				padding-left: 20px;
				padding-right: 20px;
				padding-top: 0px;
			}

			.nav .content .nav_c_l li:hover{
				background-color: #7a0000;
			}

			.nav .content .nav_c_l li a{
				text-decoration: none;
			}


			.nav .content .nav_c_l li a:link{
				color:#C8C8C8;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l li a:visited{
				color:#C8C8C8;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l li a:hover{
				color:#ec7814;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l li a:active{
				color:#aaff00;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
		</style>
	</head>
	<body>

		<div class="nav">
				<div class="content">
					<span>全部图书分类</span>

					<ul class="nav_c_l" style="display: inline-block;">
					    <li ><a href="/">首页</a></li>
						<li><a href="/usedBookRecycling/">旧书回收</a></li>
						<li><a href="/classify/">分类</a></li>
						<li><a href="/newShopList2/">入驻书店</a></li>
						<li><a href="/newGoods/">文具</a></li>
						<li><a href="http://ebook.youlu.net/" target="_blank">电子书</a></li>
					  </ul>
				</div>

		</div>
	</body>
</html>

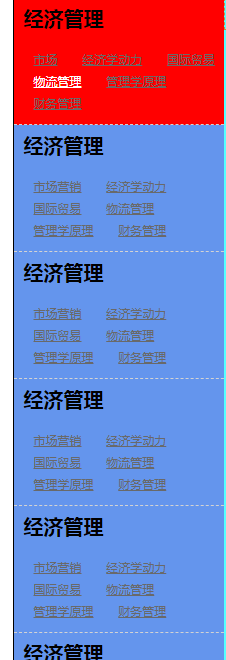

左侧图书索引菜单

1028-01

代码实现

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />
		<style>
			.left{
				width: 210px;
				height: 968px;
				background-color: #6495ED;
				border-left: solid 1px lightgrey;
				border-right: solid 1px lightgrey;
			}
			.left ul{
				width: 100%;
			}

			.left ul li{
				width: 100%;
				list-style: none;
				/* margin-left: -40px; */
				padding-top: 5px;
				padding-left: 10px;
				border-bottom: dashed 1px lightgrey;
			}

			.left ul li:hover{
				background-color: red;
			}

			.left ul li h3{
				font-size: 20px;
				font-weight: 700;
			}

			.left ul li a{
				margin: 5px;
				display: inline-block;

			}



			.left ul li a:link{
				color:#696969;;
			}
			.left ul li a:visited{
				color:#C8C8C8;
			}
			.left ul li a:hover{
				color:#ffffff;;
			}
			.left ul li a:active{
				color:#C8C8C8;
			}
		</style>
	</head>
	<body>
		<div class="left">
			<ul>
				<li>
					<h3>经济管理</h3>
					 <a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
				</li>
				<li>
					<h3>经济管理</h3>
					 <a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
				</li>
				<li>
					<h3>经济管理</h3>
					 <a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
				</li>
				<li>
					<h3>经济管理</h3>
					 <a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
				</li>
				<li>
					<h3>经济管理</h3>
					 <a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
				</li>
				<li>
					<h3>经济管理</h3>
					 <a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
					<a href="#">市场营销</a>
				</li>
			</ul>
		</div>






	</body>
</html>

帮助条

图片轮播图

书籍轮播图

黑板报

1028-01

代码实现

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />

		<style>
			.balckcast a:link{
				color:#696969;;
			}
			.balckcast a:visited{
				color:#C8C8C8;
			}
			.balckcast a:hover{
				color:#ec7814;;
			}
			.balckcast a:active{
				color:#C8C8C8;
			}
			.balckcast li{
				padding-left: 15px;
			}

		</style>
	</head>
	<body>

		<div class="balckcast">
				<h2>黑板报</h2>
				<ul>
					<li><a href="#">中秋国庆双节放假通知</a></li>
					<li><a href="#">2020年团购全国包邮</a></li>
					<li><a href="#">2020秋季延迟发货开启</a></li>
					<li><a href="#">分享领佣金</a></li>
				</ul>
				<hr/>
				<h2>购物指南</h2>
				<ul>
					<li><a href="#">支付宝担保交易,安全快捷</a></li>
					<li><a href="#">保证24小时之内发货</a></li>
					<li><a href="#">赠送积分,积分可用于支付</a></li>
					<li><a href="#">收货后7天内可以无理由退货</a></li>
					<li><a href="#">提供电子商务小包、EMS、快递</a></li>
					<li><a href="#">配送造成的所有损失由我们承担</a></li>
					<li><a href="#">提供免费短信提醒服务</a></li>
				</ul>

			</div>

	</body>
</html>

目前的整合效果

1028-01

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
		<link href="../style/reset.css" rel="stylesheet" />
		<style>
			/* 1 头部 */
			.header{
				background-color: #F4F4F4;
				height: 30px;
			}
			.header .left ,.header .right{
				display: inline-block;
				line-height:30px ;
			}
			.header .left{
				margin-left:110px ;
			}
			.header .right{
				margin-left: 500px;
			}

			/* 2 搜索框 */
			.search{
				height: 64px;
				width: 1200px;
				/* background-color: #0000FF; */
				margin: 0 auto;
				margin-top:40px ;
			}

			.search .logo , .search .searchform ,.search .cart{
				float: left;
				/* display: inline-block; */
			}
			.search .logo{
				width: 355px;
				/* border: solid 1px black; */
			}
			.search .searchform{
				width: 500px;
				margin-left: 110px;
			}

			.search .cart{
				width: 129px;
				height: 40px ;
				border: solid 1px black;
				background-image: url(../img/cart.jpg);
				background-repeat:no-repeat;
				padding-left: 45px;
				margin-left: 59px;
			}
			.search .inp{
				border: solid 3px red;
				height:34px ;
				width: 400px;
				padding: 5px;
			}
			.search .btn{
				background-color: red;
				width: 73px;
				height:50px ;
				margin-left: -6px;
				display: inline-block;
				border: 0px;
				letter-spacing:5px;
				font-size: 18px;
				font-weight: 700;
				color: white;
				vertical-align: top;
			}






			/* 3 导航条 */
			.nav{
				height: 39px;
				margin-top: 28px;
				background-color: #D80000;
			}

			.nav .content{
				width: 1200px;
				height: 100%;
				margin: 0 auto;
				/* border: solid 1px orange; */
			}
			.nav .content span{
				display: inline-block;
				height: 39px;
				line-height:39px ;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
				width: 210px;
			}
			.nav .content .nav_c_l ul{
				width: 530px;
				line-height: 39px;
			}
			.nav .content .nav_c_l li{
				display: inline-block;
				line-height: 39px;
				height: 39px;
				padding-left: 20px;
				padding-right: 20px;
				padding-top: 0px;
			}

			.nav .content .nav_c_l li:hover{
				background-color: #7a0000;
			}

			.nav .content .nav_c_l li a{
				text-decoration: none;
			}


			.nav .content .nav_c_l li a:link{
				color:#C8C8C8;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l li a:visited{
				color:#C8C8C8;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l li a:hover{
				color:#ec7814;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			.nav .content .nav_c_l li a:active{
				color:#aaff00;
				font-family: "Microsoft YaHei", "宋体";
				font-size: 15px;
				font-weight: 700;
				color: white;
			}
			/* 正文 */
			.wrapSlide{
				width: 1200px;
				background-color: #98FB98;
				margin: 0 auto;
				border: solid 1px black;
			}

			.wrapSlide .left,.wrapSlide .right{
				float: left;
			}

			/* 图书索引菜单 */
			.wrapSlide .left{
				width: 210px;
				height: 968px;
				background-color: #6495ED;
			}

			.wrapSlide .left{
				width: 210px;
				height: 968px;
				background-color: #6495ED;
				/* border-left: solid 1px lightgrey;
				border-right: solid 1px lightgrey; */
			}
			.wrapSlide .left ul{
				width: 200px;
			}

			.wrapSlide .left ul li{
				width: 210px;
				list-style: none;
				/* margin-left: -40px; */
				padding-top: 10px;
				padding-left: 10px;
				padding-bottom: 10px;
				border-bottom: dashed 1px lightgrey;
			}

			.wrapSlide .left ul li:hover{
				background-color: red;
			}

			.wrapSlide .left ul li h3{
				font-size: 20px;
				font-weight: 700;
				margin-bottom: 20px;
			}

			.wrapSlide .left ul li a{
				margin: 5px 10px;
				display: inline-block;

			}



			.wrapSlide .left ul li a:link{
				color:#696969;;
			}
			.wrapSlide .left ul li a:visited{
				color:#C8C8C8;
			}
			.wrapSlide .left ul li a:hover{
				color:#ffffff;;
			}
			.wrapSlide .left ul li a:active{
				color:#C8C8C8;
			}

			.wrapSlide .right{
				width: 990px;
				height: 968px;
				background-color: #55ffff;
			}

			/* 帮助条 */
			.helpBar{
				border: dashed 1px #CD853F;
				height: 30px;
			}
			.wrapContent .wrapContentL, .wrapContent .wrapContentR{
				float: left;
			}
			.wrapContent .wrapContentL{
				width: 750px;
				height: 940px;
				border: solid 2px #D80000;
				margin-left: 10px;
				margin-right: 20px;
			}
			.wrapContent .wrapContentR{
				width: 200px;
				height: 940px;
				border: solid 2px #ffff00;
			}




			.wrapContent .wrapContentR a:link{
				color:#696969;;
			}
			.wrapContent .wrapContentR a:visited{
				color:#C8C8C8;
			}
			.wrapContent .wrapContentR a:hover{
				color:#ec7814;;
			}
			.wrapContent .wrapContentR a:active{
				color:#C8C8C8;
			}
			.wrapContent .wrapContentR li{
				padding-left: 15px;
			}
		</style>
	</head>
	<body>




		<!-- <div class="header"> </div> -->
		<div class="header">
			<div class="left"> 您好,欢迎光临有路网!</div>
			<div class="right"> <span  style="color: red;">请登陆</span>  <span class="borderright" >免费注册</span>
			<span class="borderright" >我的有路 </span>
			<span  class="borderright" >我要开店 </span>
			<span class="borderright" >有路公众号 </span>
			<span class="borderright" >团购批发 </span>
			<span>客服服务</span>
			</div>

		</div>
		<div class="search">
			<div class="logo">
				<img src="../img/logo.jpg" />
			</div>
			<div class="searchform">
				<form>
					<input type="text" class="inp" placeholder="书名">
					<input type="button" value="搜索" class="btn">
				</form>
			</div>

			<div class="cart"> 购物车</div>
			<div class="clear"></div>
		</div>

		<!-- 导航-->
		<div class="nav">
				<div class="content">
					<span>全部图书分类</span>

					<ul class="nav_c_l" style="display: inline-block;">
					    <li ><a href="/">首页</a></li>
						<li><a href="/usedBookRecycling/">旧书回收</a></li>
						<li><a href="/classify/">分类</a></li>
						<li><a href="/newShopList2/">入驻书店</a></li>
						<li><a href="/newGoods/">文具</a></li>
						<li><a href="http://ebook.youlu.net/" target="_blank">电子书</a></li>

					  </ul>
				</div>

		</div>





		<div class="wrapSlide">
			<div class="left">
				<ul>

					<li>
						<h3>经济管理</h3>
						 <a href="#">市场</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>
					<li>
						<h3>经济管理</h3>
						 <a href="#">市场营销</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>
					<li>
						<h3>经济管理</h3>
						 <a href="#">市场营销</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>
					<li>
						<h3>经济管理</h3>
						 <a href="#">市场营销</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>
					<li>
						<h3>经济管理</h3>
						 <a href="#">市场营销</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>
					<li>
						<h3>经济管理</h3>
						 <a href="#">市场营销</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>
					<li>
						<h3>经济管理</h3>
						 <a href="#">市场营销</a>
						<a href="#">经济学动力</a>
						<a href="#">国际贸易</a>
						<a href="#">物流管理</a>
						<a href="#">管理学原理</a>
						<a href="#">财务管理</a>
					</li>

				</ul>
			</div>
			<div class="right">
					<div class="helpBar"></div>

					<div class="wrapContent">
						<div class="wrapContentL">
							<img src="../img/lunbo1.jpg"  width="750" height="340"/>
						</div>
						<div class="wrapContentR">

							<h2>黑板报</h2>
							<ul>
								<li><a href="#">中秋国庆双节放假通知</a></li>
								<li><a href="#">2020年团购全国包邮</a></li>
								<li><a href="#">2020秋季延迟发货开启</a></li>
								<li><a href="#">分享领佣金</a></li>
							</ul>
							<hr/>
							<h2>购物指南</h2>
							<ul>
								<li><a href="#">支付宝担保交易,安全快捷</a></li>
								<li><a href="#">保证24小时之内发货</a></li>
								<li><a href="#">赠送积分,积分可用于支付</a></li>
								<li><a href="#">收货后7天内可以无理由退货</a></li>
								<li><a href="#">提供电子商务小包、EMS、快递</a></li>
								<li><a href="#">配送造成的所有损失由我们承担</a></li>
								<li><a href="#">提供免费短信提醒服务</a></li>
							</ul>

						</div>
						<div class="clear"></div>
					</div>

			</div>
			<div class="clear"></div>
		</div>



	</body>
</html>

Released under the MIT License.
